Lightweight Rugged Electronics Racks: Versatile Mounting Solutions for Demanding Environments

The Lightweight Rugged Electronics Rack (L-RER) is a solution designed for versatile use across aircraft, ground, and sea vehicles. As an FAA-certified product, it meets rigorous standards for safety and reliability.

This 3rd Generation rack offers several key improvements over its predecessors. It is significantly lighter, which not only enhances performance but also reduces overall costs. The new L-RER design decreases manufacturing and delivery times for common sizes to as short as one week, compared to six weeks for the previous design. Additionally, it is more affordable and faster to produce, while still delivering superior strength and durability.

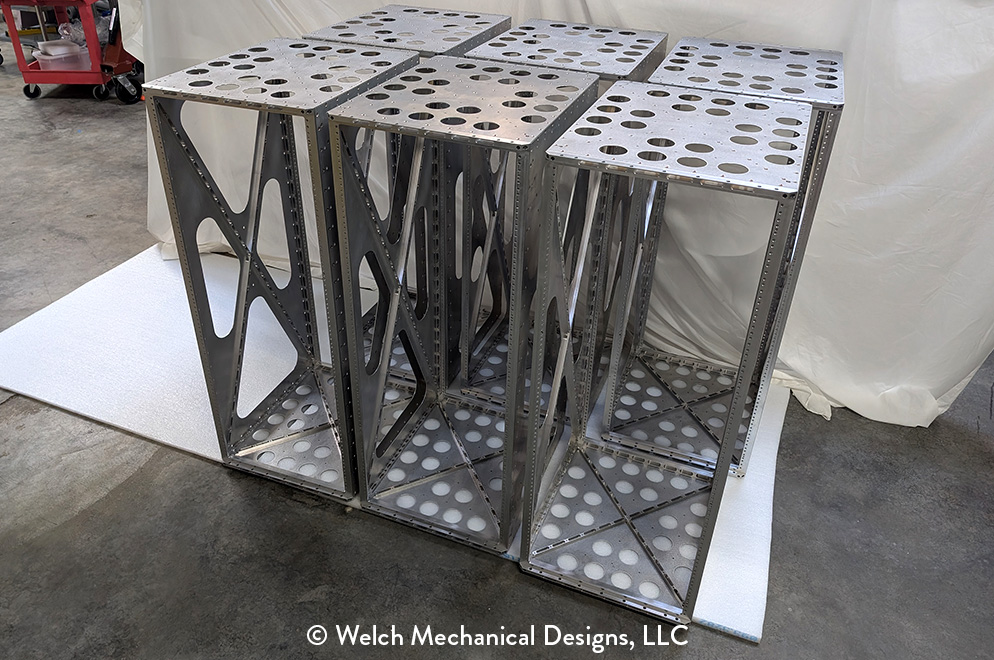

Constructed from high-strength 7075 aluminum and assembled with high-strength alloy steel hardware, the L-RER is built to withstand demanding conditions. Its design allows for easy disassembly and reassembly, making it convenient for storage, empty shipping, or modifications tailored to specific missions. This adaptability ensures that the L-RER can meet a wide range of operational needs effectively.

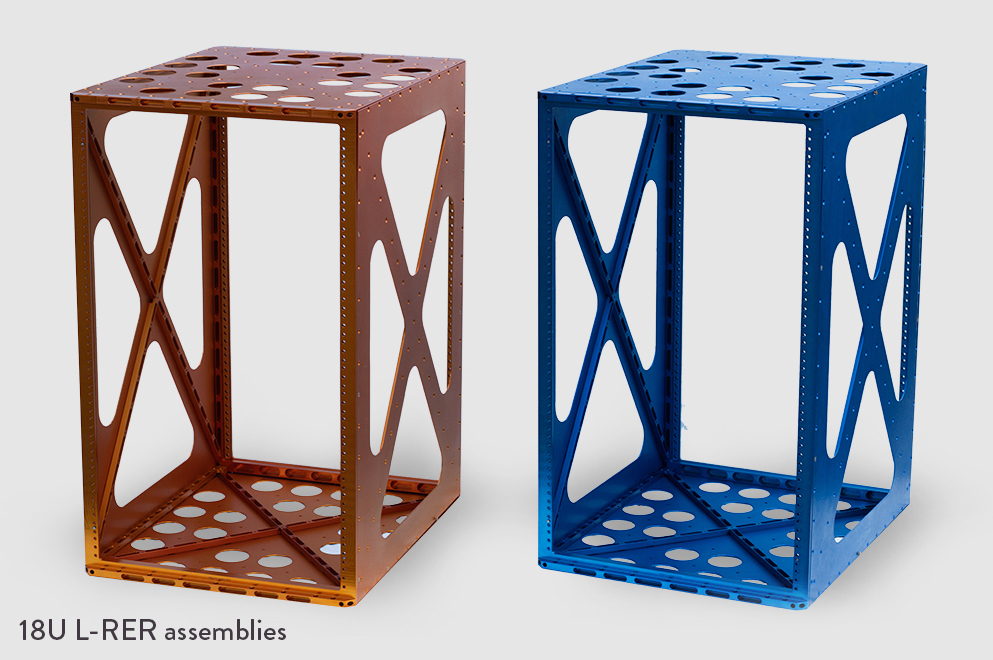

Blue and Orange Lightweight Electronics Racks

Advanced Customization Options

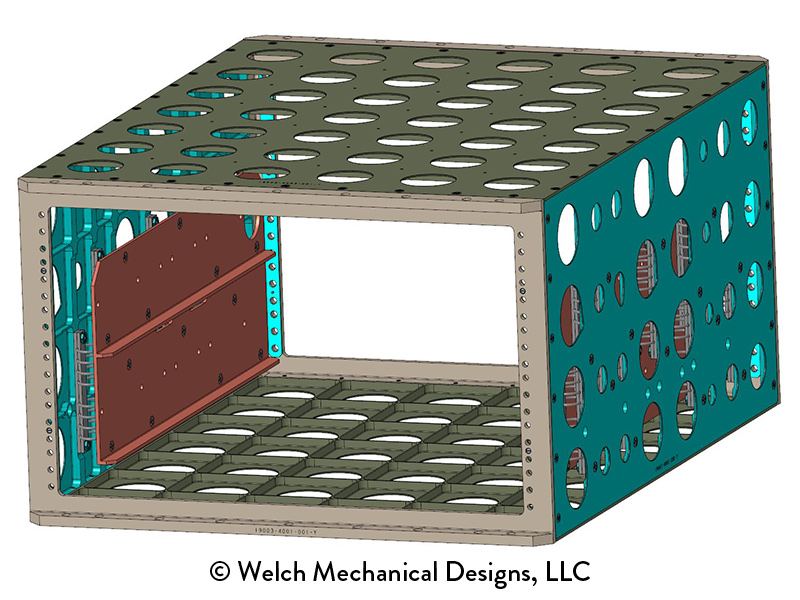

The L-RER features standard "U" hole patterns on both the front and back panels, and it comes with the option for FAA 8110-3 certification.

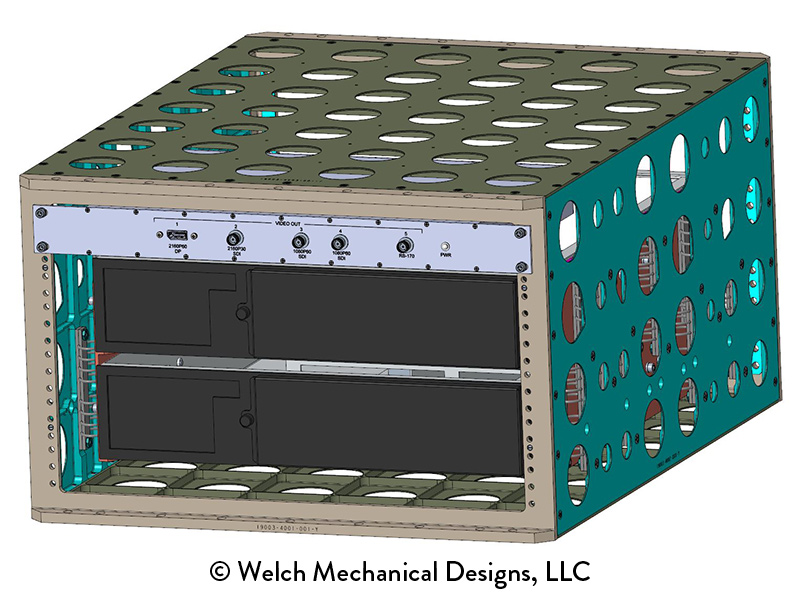

It is available in 13 standard sizes and offers shock and vibration isolating mounts, as well as lightweight mounting shelves. The rack is highly customizable, allowing for adjustments in height, width, and depth. Additionally, it can be tailored with custom panels to mount specific equipment, various anodize or iridite colors, and options for attaching equipment to the outside of the L-RER.

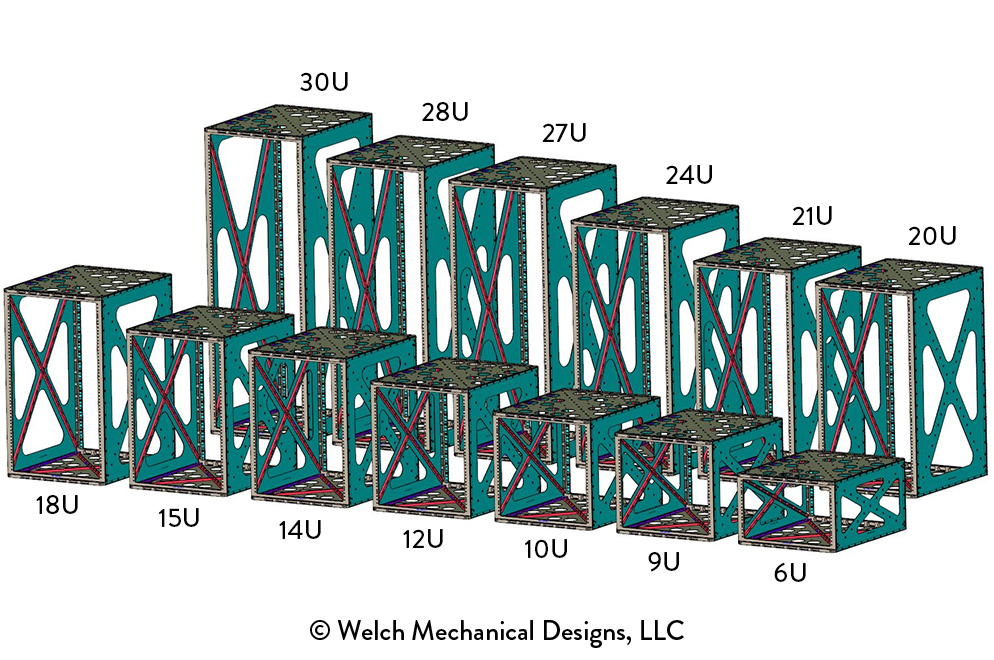

Our Lightweight Rugged Electronics Rack features standard "U-type" electronics mounting and is available in 6U, 9U, 10U, 12U, 14U, 15U, 18U, 20U, 21U, 24U, 27U, 28U and 30U model heights. All models are stackable.

Environmental Resilience

A wire rope isolation system can be installed beneath the L-RER to effectively mitigate the impacts of shock and random vibration on the mounted instruments. Additionally, each L-RER rack undergoes rigorous assembly and is subjected to a series of random vibration tests to ensure its resilience and reliability in turbulent environments.

Installation and Compatibility

Eighteen mounting holes in the frame of the L-RER allow a wide variety of direct attachment options to suit the needs of the customer. All models can be mounted to our King Air Riser assembly for ease of installation.

Technical Specifications*

Size	Height (in)	Weight (lbs)
6U	12.625	19.21
9U	17.875	21.07
10U	19.625	21.93
12U	23.125	23.46
14U	26.625	24.69
15U	28.375	25.39
18U	33.625	27.34
20U	37.125	28.82
21U	38.875	29.61
24U	44.125	31.73
27U	49.375	34.46
28U	51.125	35.12
30U	54.625	36.80
