Low Distortion Mirror Mount

Low Distortion Mirror Mount :

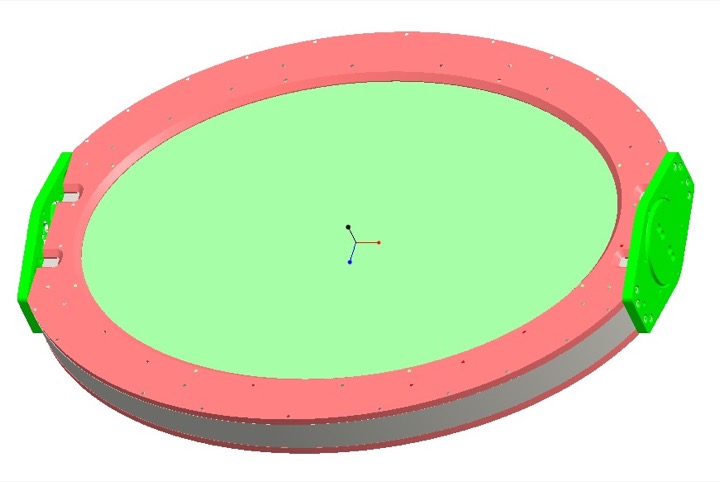

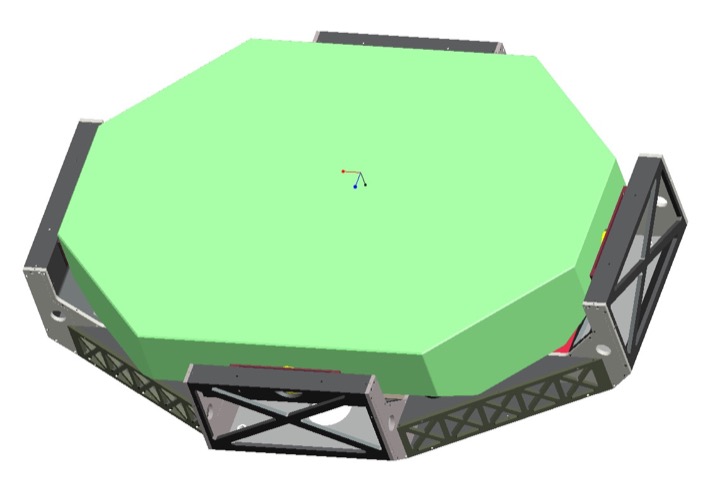

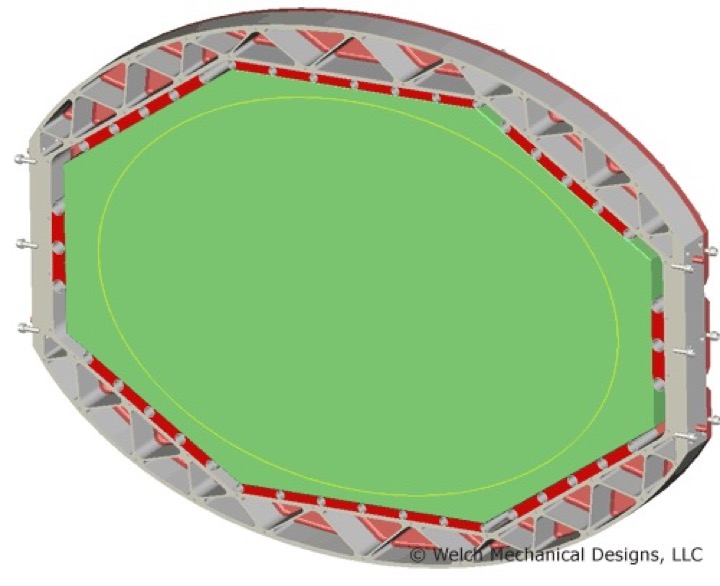

Welch Mechanical Designs has designed and manufactured several low distortion mirror mounts for large aperture mirrors. The purpose of these mounts is to provide a stable optical platform at a wide range of environmental conditions while maintaining the optical properties of the supported mirror in any orientation. WMD uses several mounting techniques and a unique combination of different thermal expansion materials to achieve these goals. We also perform FEA to ensure optical flatness, vibrational modes and other critical parameters are optimized.

For more information about optic mounts or to discuss your optic mount needs, please contact us.
